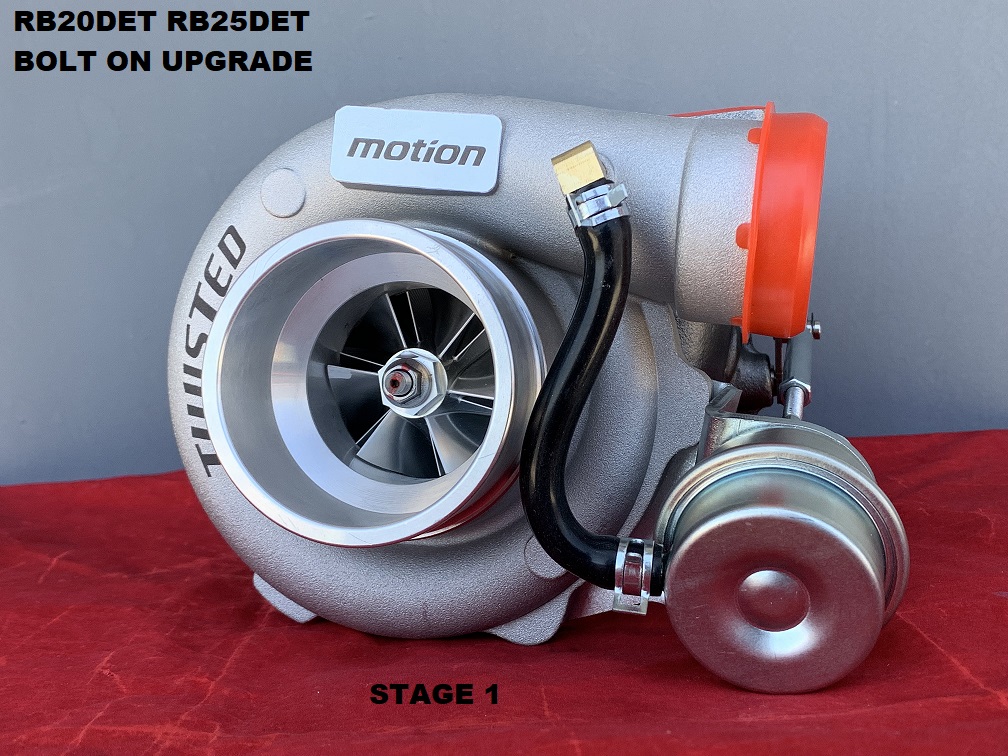

RB20/RB25 #1 QUICK SPOOL TURBO

RB20/RB25 #1 QUICK SPOOL TURBO

Back by popular demand!

Most requested turbo for the RB fans.

Made for quick spooling response closest to factory but pulls a lot harder.

Good up to 420HP or 28PSI

Turbo comes with everything shown in pictures

THESE TURBOS ARE MADE TO ORDER TAKES ABOUT 5-7 DAYS TO MAKE AND MACHINE THE REAR HOUSING FOR THE FACTORY 6 BOLT EXHAUST AND WILL TAKE ABOUT 3 DAYS OF SHIPPING TIME TO GIVE YOU AN IDEA OF TIME FRAME

SPECS:

COMPRESSOR:

3″ INLET 2″ OUTLET

Inducer Diamter： 52.7 mm
Exducer Diamter： 76.2 mm
A/R： 0.50 (FRONT HOUSING)

TURBINE:

Turbo Manifold Flange：T3 flange

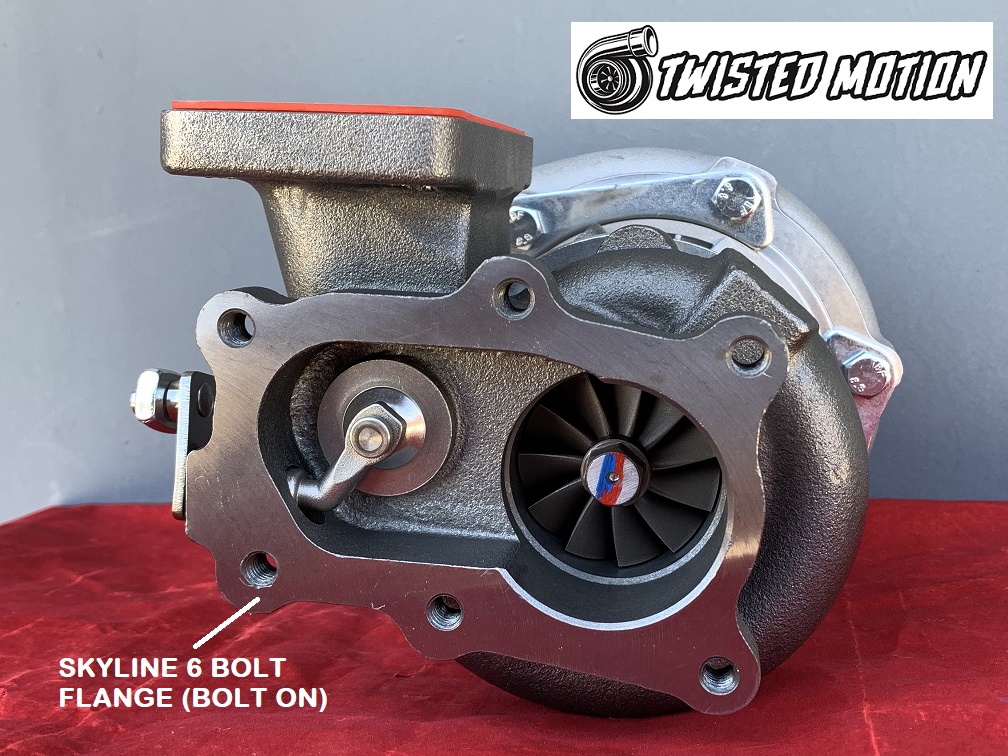

Exhaust (Downpipe) Flange: FACTORY 6 bolt Flange
Inducer Diamter： 65.2 mm
Exducer Diamter： 48.2 mm
A/R:   0.63 (REAR HOUSING)

Comes with T3 Gasket

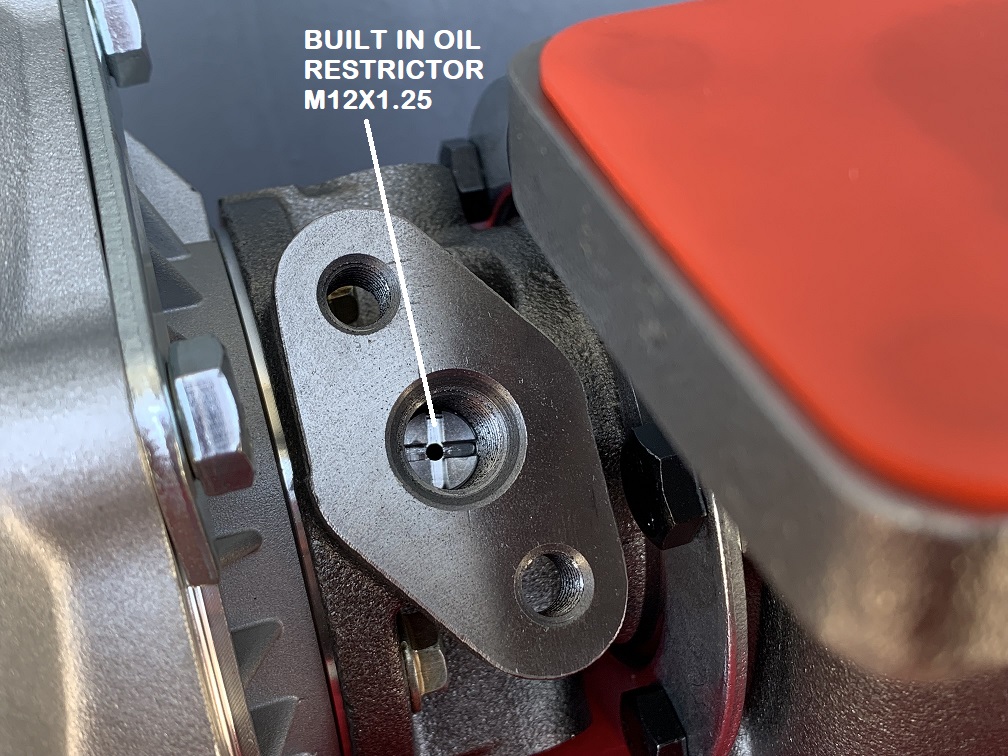

Oil drain and feed gasket and M12X1.25 oil feed banjo

1 YEAR WARRANTY FROM PURCHASE DATE !

NOTE: SOME FITTINGS MAY VERY BETWEEN SERIES 1 AND SERIES 2 “RB” ENGINES SO MIGHT HAVE TO SOURCE WATER FITTINGS.

FREE SHIPPING TO USA ADDRESS, WE ALSO SHIP TO OTHER COUNTRIES FOR AN ADDITIONAL $140 FEE
